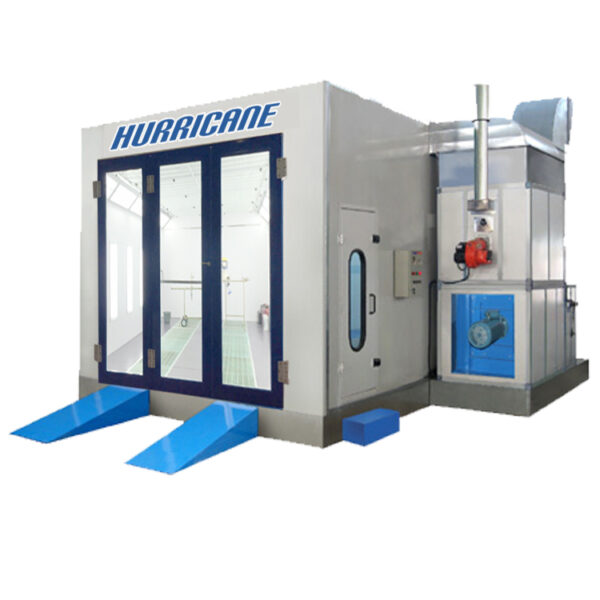

The Hurricane GP100 upmarket spray booth has full CE Certification and 1 year guarantee.
HAS MAJOR VEHICLE MANUFACTURER APPROVALS, EXCLUDING MERCEDES-BENZ AND BMW
| Technical Data GP100 Upmarket 7m Spray Booth | |
| Description | Data |

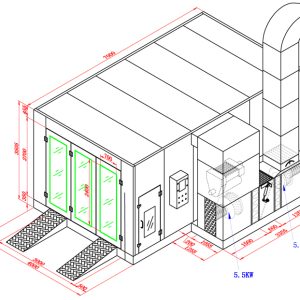

| External Dimentions | 7000mm x (4000mm+1255MM) x 3505mm (L x W x H) |
| Internal Dimentions | 6900mm x 3900mm x 2700mm (L x W x H) |

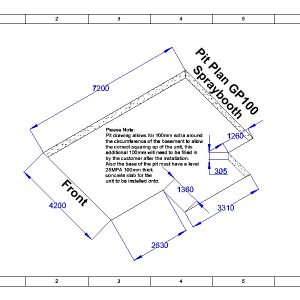

| Basement | 350mm galvanised steel basement, 2 rows of grids and 3 rows of checkerplate. 2 x ramps 520mm wide x 2000mm long. |
| Main Door | 3-Folds, 3000mm x 2700mm (W x H) 0.8mm steel plate EPS density = 18KG/m3 with extra large square tempered glass windows |
| Escape Door | 2 Unit, 800mm x 2000mm (W x H) 0.426mm steel plate EPS density = 18KG/m3 with square tempered glass window |
| Wall Panels | 50mm thick EPS fireproof, heat preservation wall panels 0.426mm steel plate EPS density = 14KG/m3 |
| Roof Plates | Galvanised steel plates |
| Lighting | Ceiling Lights : 10 x Units x 4Pcs = 40 Pcs x 22W LED lights >=1100Lx Side Wall Lights : 8 x Units x 4Pcs = 40 Pcs x 22W LED lights >=1100Lx |
| Glass | Clear tempered glass. |
| Intake and Exhaust system positioning | Installed at Left or Right of booth. |
| Intake and Exhaust System | Intake = 1 x 5.5KW turbo fan air capacity = 18000m3/hour Exhaust = 1 x 5.5KW turbo fan air capacity = 18000m3/hour with manual vent control device |
| Filtering System | Ceiling Filter (560G/m2 efficiency >=93%) and Exhaust fiberglass filter(Undergrid Paint Arrestor 250G/m2), also Pre-filter (200G M-Type Filter) and Exhaust filter (200G M-Type Filter) |
| Heating System | Riello G20 Diesel burner with stainless steel 1.5mm combustion chamber, heating productivity = 200000Kcal, with air damper from spraying to baking cycle |
| Control system | Lighting switch, spraying, bake and spray for winter and baking functions, time setting, failure indicator, temperature controler, temperature limit controller, pressure guage and hour meter. |
| Noise | < 80 dB |
| Power Supply | 380V 3Phase |
| Total Power | 13.5KW |
