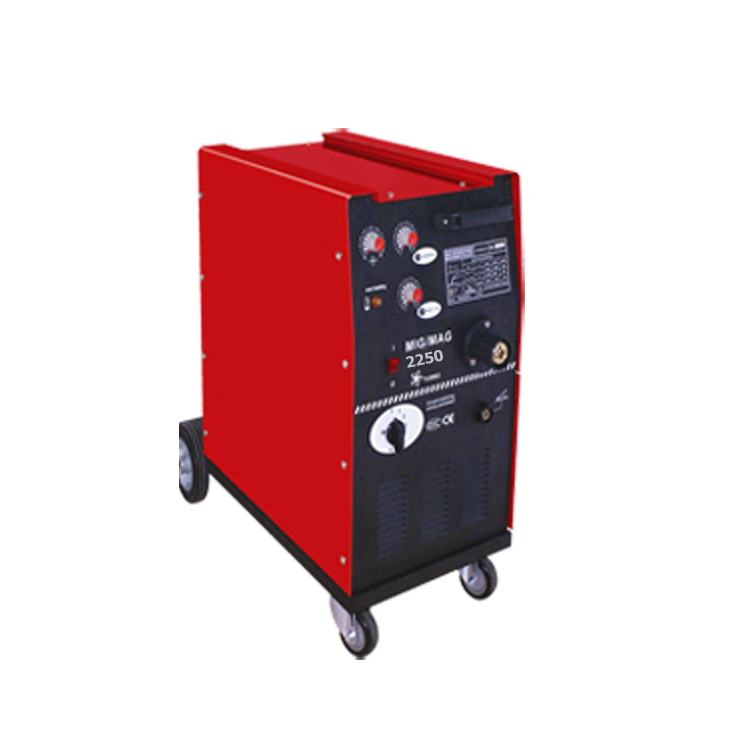

CO2 WELDER 380V 250A MIGMAG2250

Co2 Welder 380V 250A MIGMAG2250
The MIGMAG CO2 Welder is a 380V CO2 Welder with a 35-250A Current range it has a 25% Duty Cycle and Class F Insulation, it weighs in at 78KG with a size of 920mm x 390mm x 640mm.

The MIG MAG gas shielded series welders can perfectly weld a variety of metals including carbon steel, alloy steel, aluminum and copper alloy, etc. Different alloy wires and be used according to the various alloy materials being welded.

MIGMAG CO2 Welder Features :
Perfect for thin and medium thickness sheet metal welding.
Spot weld two overlapped metal sheets from one side.
Adjusting soft start provides a smooth arc start.
Simple and economic wire feeder with motor.
Automatic voltage compensation provides stable current.
High productivity, good quality, no spatter, or spray arc and good visibility while welding.
Small heated area from welding, ensures small transformation and perfect welding shape.
Overload protection and overheating protection.
Technical Data MIGMAG2250 CO2 Welder 380V 250A
Description Data
Input Voltage 380V 50Hz
Input Power 7.2KVA
No Load Voltage 17 – 34V
Electric Welding Current Range 35 – 250A
Duty Cycle 25%
Wire Spool Diameter 15KG 300mm
Flux Core Wire 0.8 – 1mm
Wire For Steel 0.8 – 1mm
Insulation Class F
Protection Degree IP21S
Dimensions 920 x 390 x 640mm
Weight 78kg
