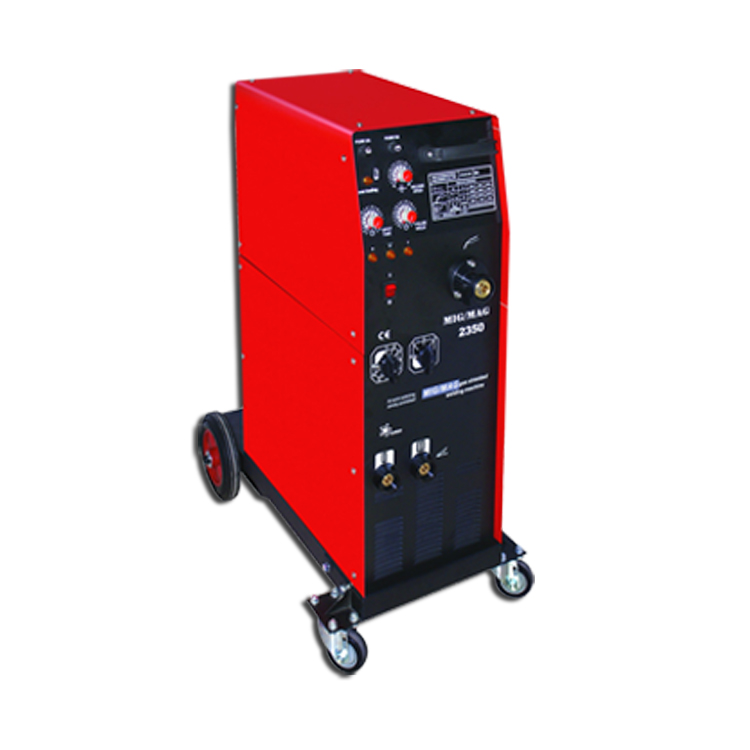

CO2 WELDER 380V 350A MIGMAG2350

Co2 Welder 380V 350A MIGMAG2350
The MIGMAG CO2 Welder is a 380V CO2 Welder with a 31-350A Current range it has a 25% Duty Cycle and Class F Insulation, it weighs in at 95KG with a size of 880mm x 440mm x 1000mm.

The MIG MAG gas shielded series welders can perfectly weld a variety of metals including carbon steel, alloy steel, aluminum and copper alloy, etc. Different alloy wires and be used according to the various alloy materials being welded.

MIGMAG CO2 Welder Features :
Perfect for thin and medium thickness sheet metal welding.
Spot weld two overlapped metal sheets from one side.
Adjusting soft start provides a smooth arc start.
Simple and economic wire feeder with motor.
Automatic voltage compensation provides stable current.
High productivity, good quality, no spatter, or spray arc and good visibility while welding.
Small heated area from welding, ensures small transformation and perfect welding shape.
Overload protection and overheating protection.
Technical Data MIGMAG2350 CO2 Welder 380V 350A
Description Data
Input Voltage 380V 50Hz
Input Power 11.1KVA
No Load Voltage 16 – 24V
Electric Welding Current Range 35 – 350A
Duty Cycle 25%
Wire Spool Diameter 15KG 300mm
Flux Core Wire 0.8 – 1.2mm
Wire For Steel 0.8 – 1.2mm
Insulation Class F
Protection Degree IP21S
Dimensions 880 x 440 x 1000mm
Weight 95kg
